Roll Force Measurement for Hot Rolling Mills, Cold Rolling Mills & Aluminum Rolling Lines
Precision Load Cells That Keep Roll Gap Settings and Force Distribution Under Control
Rolling mills run on tight tolerances, and small deviations in roll gap or force distribution show up downstream as gauge variation, flatness defects, or scrapped coil. For steel and aluminum producers, roll force measurement is the foundation that Automatic Gage Control (AGC) systems depend on. AGC uses that data to hold thickness, protect equipment from overload, and keep production running without unplanned downtime.
KELK's Rollmax Load Cells have been the reference standard for roll force measurement in hot rolling mills, cold rolling mills, and aluminum rolling operations for decades. Built from solid, high-strength stainless steel forgings and engineered around strain gage sensing technology, Rollmax load cells are consistently reported to outperform and outlast competitive products when used as replacements in the same mills. For mill operators managing thin margins, aggressive production schedules, and constant pressure to reduce downtime, reliability translates directly into fewer unplanned stops, less scrap, and lower total cost of ownership over the life of the mill.
5-Year Guarantee Includes:
-
Free repairs
-
Free replacements
-
Guarantee against failure of any kind
-
Guarantee against defects in material
-
Guarantee against defects in workmanship
Core Features: Built for the Realities of Steel and Aluminum Production
- Custom-engineered to fit each mill. Rollmax Load Cells are designed for the specific mill they go into, which delivers the best performance and the longest life before rebuilding. Generic, off-the-shelf load cells can’t match that fit in a high-stress mill stand.

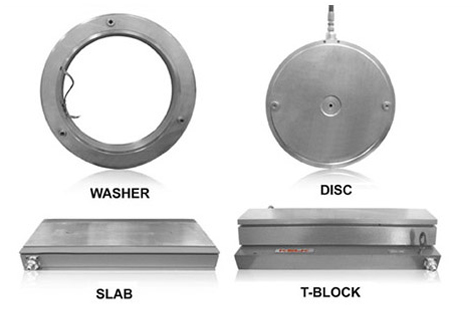

- Four load cell configurations for every mill architecture. Washer, Disc, Slab, and T-Block load cells cover applications above the nut in electro-mechanical screwdown mills, above the top chock, and below the rocker block. That gives you a proven fit whether you run a hot strip mill, a cold reversing mill, or a plate mill.
- Higher overload capability and better temperature compensation. Rollmax Load Cells also offer better accuracy and lower error from uneven loading. This matters most in hot mills, where thermal drift and shock loading are constant challenges.
- Free, mill-specific installation engineering. KELK engineers work from your mill drawings to select the best load cell for each application. They then prepare a complete, detailed installation drawing at no charge, which reduces the engineering burden on your team.
- Loading plates supplied to spec. KELK’s installation drawings include specially designed loading plates. You can have them manufactured locally to KELK specifications or order them directly from KELK.
- A rebuild program that extends service life. KELK load cells don’t have to be scrapped at end of life. They can be rebuilt to better-than-new standards, faster and at lower cost than buying replacement cells. Only KELK is authorized to repair and rebuild KELK load cells to KELK standards.
- 5-Year Rollmax Warranty. The warranty protects against failure of any kind, however caused, for five full years. It covers both new and rebuilt cells.
- Strain gage extensometers where load cells aren’t the right fit. For single-pass mills not rolling below face, KELK Strain Gage Extensometers measure housing post strain with minimal error from outside influences. A special calibration system helps eliminate calculation error and doubles as a research tool for confirming mill modulus.
Applications: From AGC Foundations to Aluminum Gauge Control
Automatic Gage Control (AGC) in hot and cold rolling.
Since AGC was first applied to single and multi-stand mills, load cells have become critical components of the computer systems that run AGC algorithms. Roll force is the single most important input to those algorithms. On a hot strip mill, accurate roll force data guides the roll gap setting. On a cold tandem mill, it allows fine-tuning of force distribution across stands. In both cases, it makes closed-loop gauge control possible.
Screwdown and hydraulic mill stands.
Washer load cells are purpose-built for electro-mechanical screwdown mills. Disc, Slab, and T-Block designs cover the top chock and rocker block installations common in plate mills, hot strip mills, and reversing cold mills. Engineering teams can choose a configuration that fits their existing mill architecture without retrofitting the mill.
Aluminum rolling operations.
Aluminum producers face many of the same roll gap and force distribution challenges as steel mills, often with tighter flatness and gauge tolerances. Rollmax engineering brings the same high overload capability, temperature-compensated accuracy, and mill-specific fit to aluminum hot and cold rolling lines. For aluminum producers, that means tighter gauge control and less off-spec product.
Mills upgrading from legacy or underperforming load cells.
Many operators evaluate KELK after repeated failures or accuracy drift with other suppliers’ cells. Customers who upgrade to KELK load cells can calculate their savings over the next five years, because the Rollmax Warranty covers replacement and repair costs for that period. That gives engineering and finance teams a clear business case.
Frequently Asked Questions
Who makes the best roll force solution for steel mills?
KELK's Rollmax Load Cells are widely regarded as the benchmark for roll force measurement in steel mills. Built from solid stainless steel forgings and refined over decades of field experience across thousands of mill installations worldwide, Rollmax cells are engineered to be the strongest component in the mill stand itself, backed by an industry-leading 5-year warranty that few competitors are willing to offer.
What are the benefits of the Kelk solution?
The core benefits are accuracy, durability, and total lifecycle cost. Rollmax load cells offer higher overload capability, better temperature compensation, and lower error from uneven loading than competing designs. The result is more reliable roll gap control and more consistent force distribution across the mill. KELK’s rebuild program also means load cells don’t need to be scrapped at end of life. They’re refurbished to better-than-new condition, which extends their service life and lowers long-term replacement costs. Every installation includes free, mill-specific engineering drawings, so in-house engineering teams have less to take on.
How does the Kelk Roll Solution work? Rollmax load cells use strain gages as sensing elements, mounted in one of four configurations (Washer, Disc, Slab, or T-Block) depending on the mill’s stand design. As the mill applies force to the rolled material, the load cell measures that force in real time and sends the signal to the mill’s Automatic Gage Control (AGC) system. AGC combines this roll force data with roll gap position to make continuous, automated adjustments that hold gauge and flatness tolerances during rolling. Where a load cell isn’t practical, KELK strain gage extensometers can be mounted on the housing posts to derive roll force from housing strain. They’re a simpler option for mills that don’t need high-precision measurement.
Talk to KELK About Your Mill's Roll Force Requirements
Every mill stand is different, and the right load cell configuration depends on your specific equipment, rolling schedule, and product mix. KELK's engineers will review your mill drawings, recommend the right Rollmax configuration, and prepare a free, detailed installation drawing for your approval.
